PROFESSIONAL MOTORSPORT OFF-ROAD & RALLY RAID ORQ 15/50

The ORQ-series off-road dampers have proven highly successful across a wide range of Rally Raid events. Originally developed for off-road and Rally Raid vehicles, the ORQ dampers are also well-suited to similar applications where this layout is ideal.

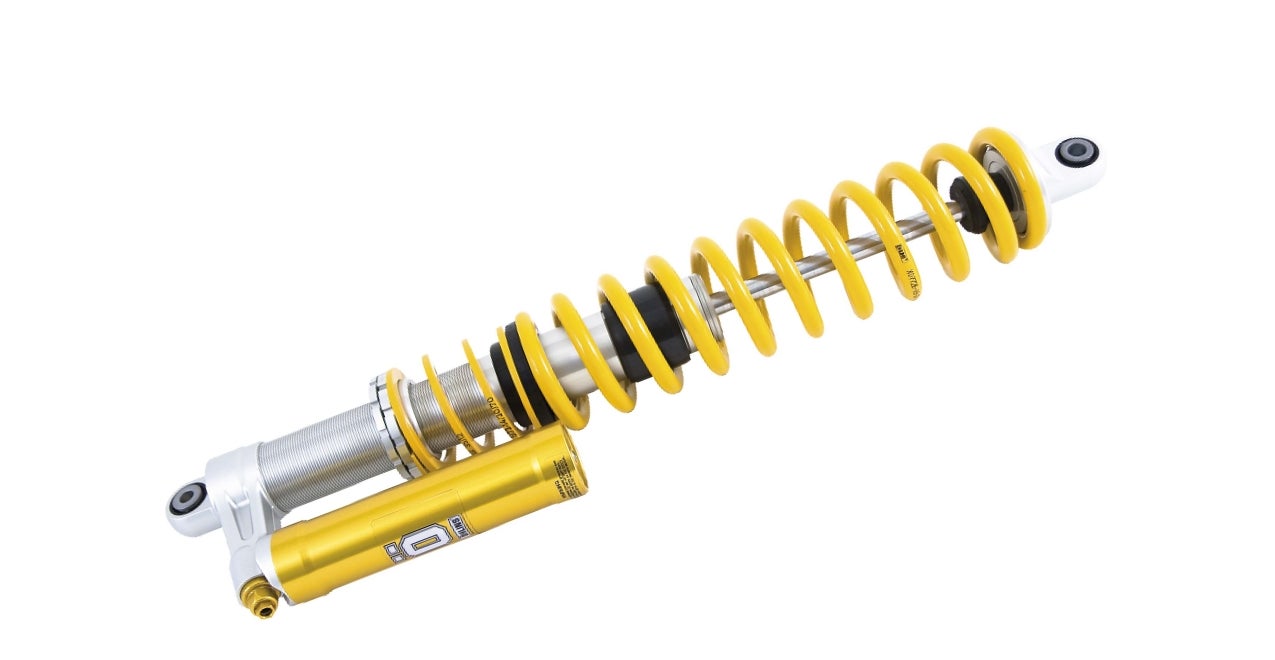

Designed with performance and durability in mind, the ORQ 18/50 features a swiveling hose for improved oil flow and easier installation. The dampers use an 18” shaft with a 50 mm piston and are equipped with remote reservoirs. Compression and rebound adjusters are included, along with Öhlins’ Progressive Damping System (PDS).

Each unit comes with a protective sleeve and two circlips to help minimize spring wear. Key components—such as the spherical plain bearings and rebound adjuster—have been reinforced for added strength.

Built to handle the extreme forces and demands of off-road racing, the ORQ 18/50 is available in two versions: one with a piggyback reservoir and one with a remote hose. It offers two-way adjustable compression and one-way adjustable rebound. The latest version also features an improved PDS, as seen in Öhlins’ rally damper lineup.

SPECIFICATIONS:

•    Mono-Tube gas pressurized shock absorber
•    50 mm piston
•    18 mm shaft
•    Available in 7 different lengths
•    PDS (Progressive Damping System)
•    Remote reservoir
•    Adjustable rebound damping
•    Adjustable compression damping in both high- and low-speed ranges.
