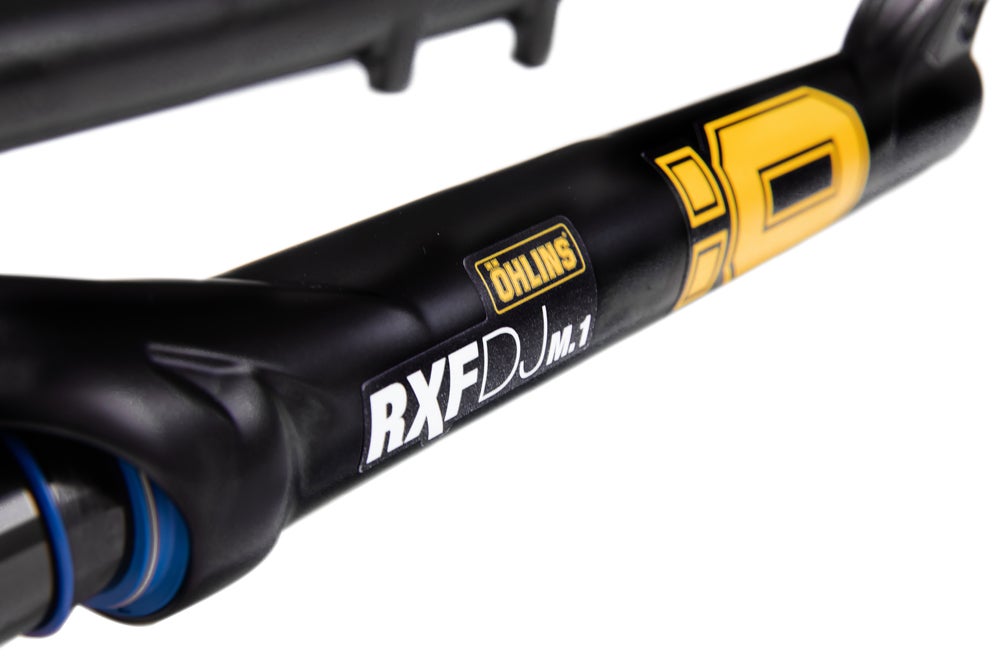

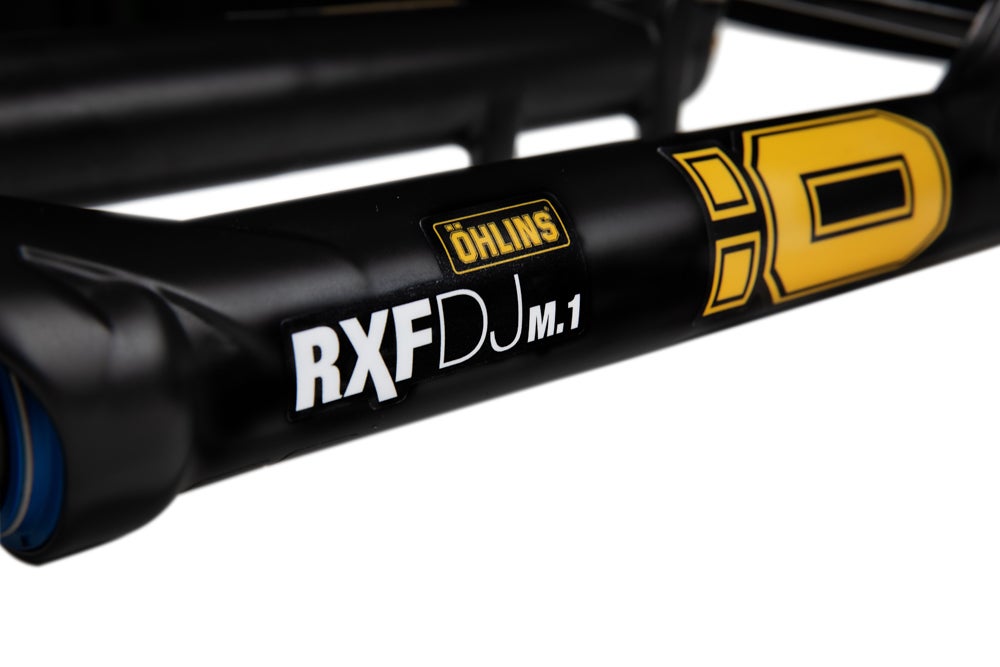

RXFDJ m.1 Front Fork Mountain Bike

Part no: FGMTB 3609 2361

$1 095.00

Select model

Out of stock

Warning! This product can expose you to chemicals including Nickel, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov

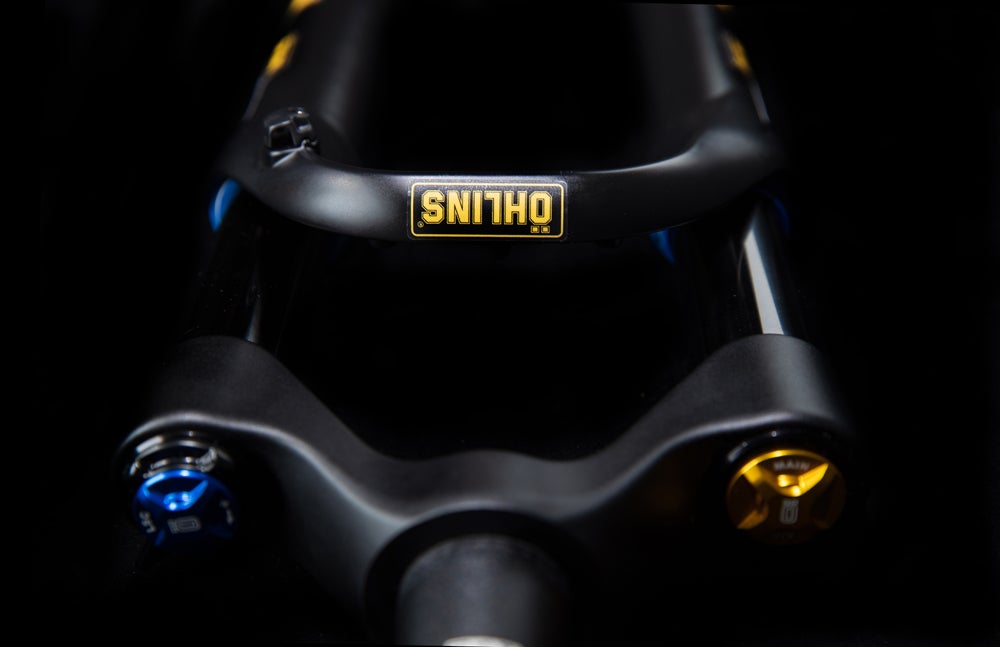

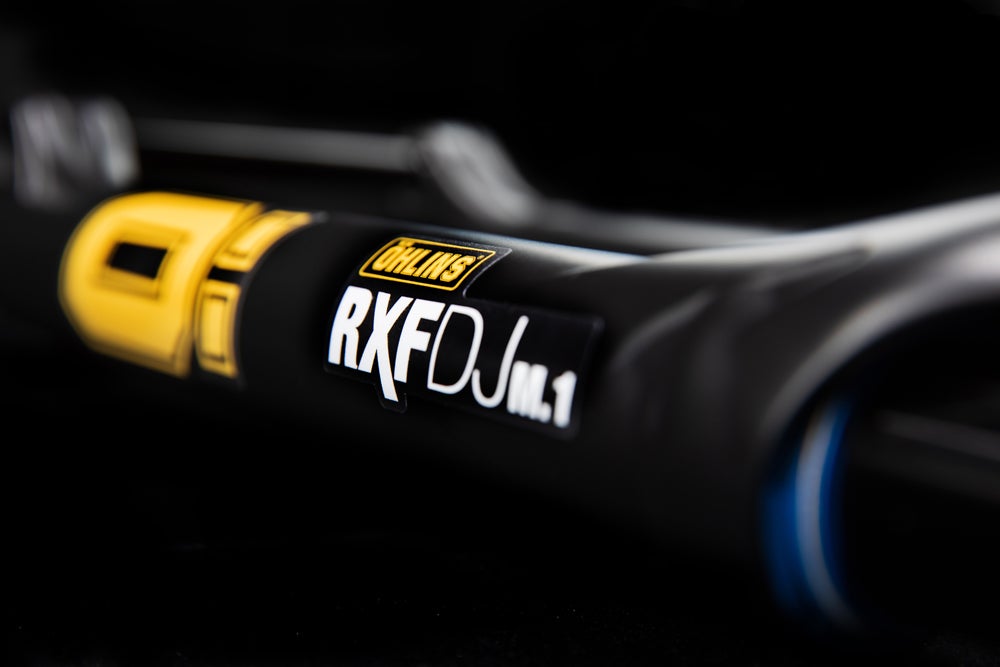

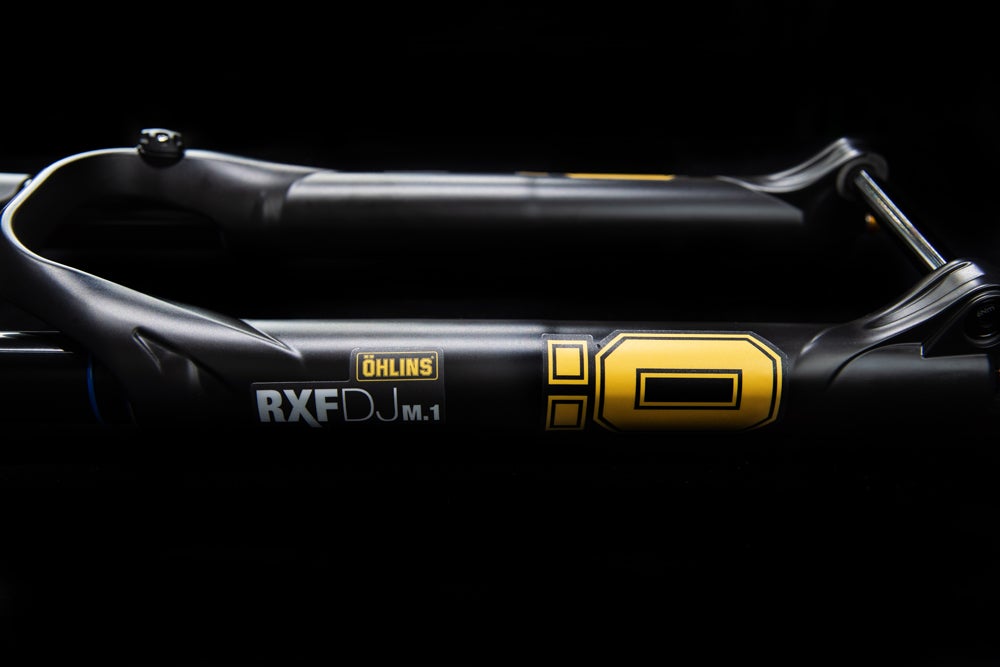

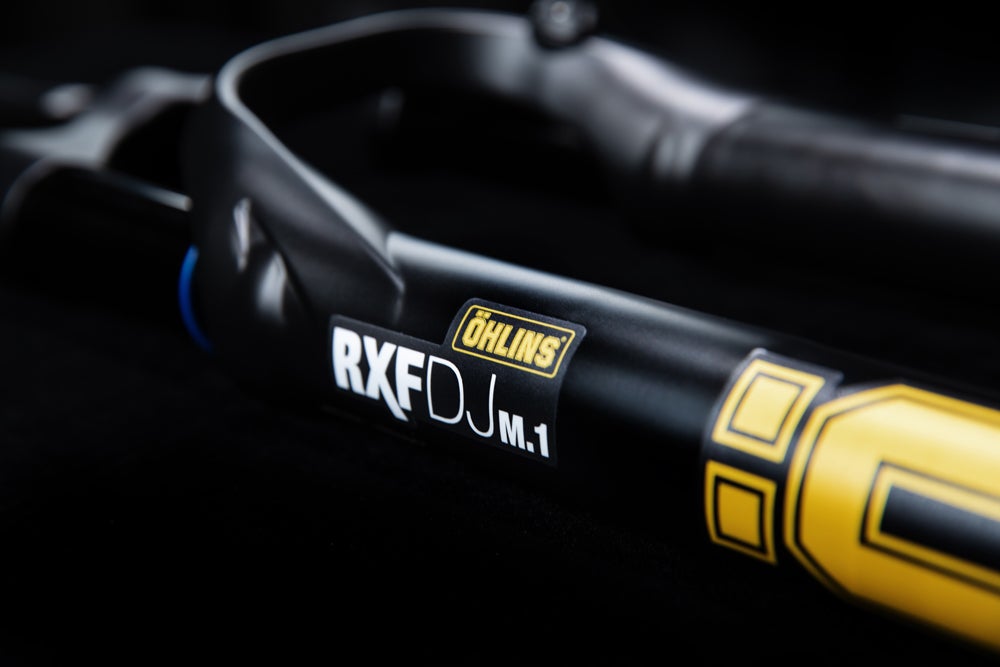

The RXFDJ m.1 is a high-performance dirt jump fork built around our race proven TTX18 cartridge and 3-chamber air spring. It offers superior strength and stiffness, excelling in the slopestyle, pump track, and dirt jump arenas. This fork has been piloted by Matt Jones and Nico Vink to push what’s possible on a bike.

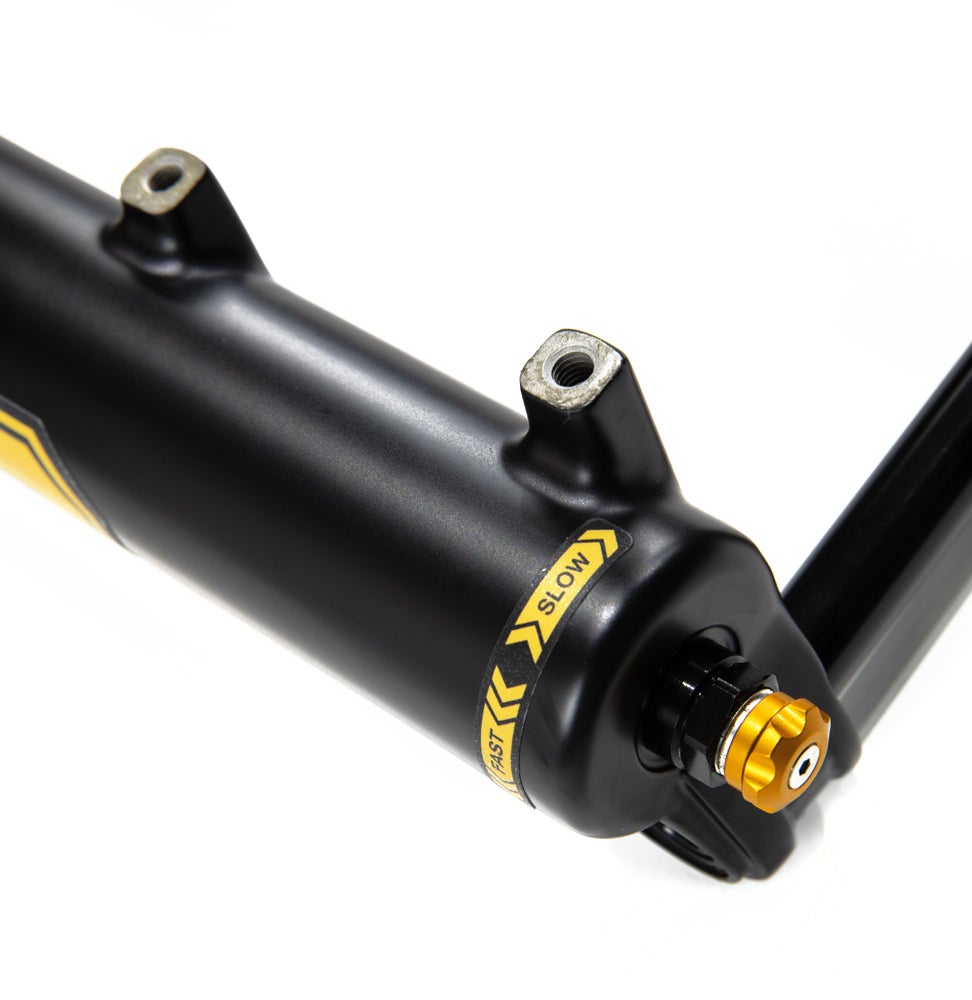

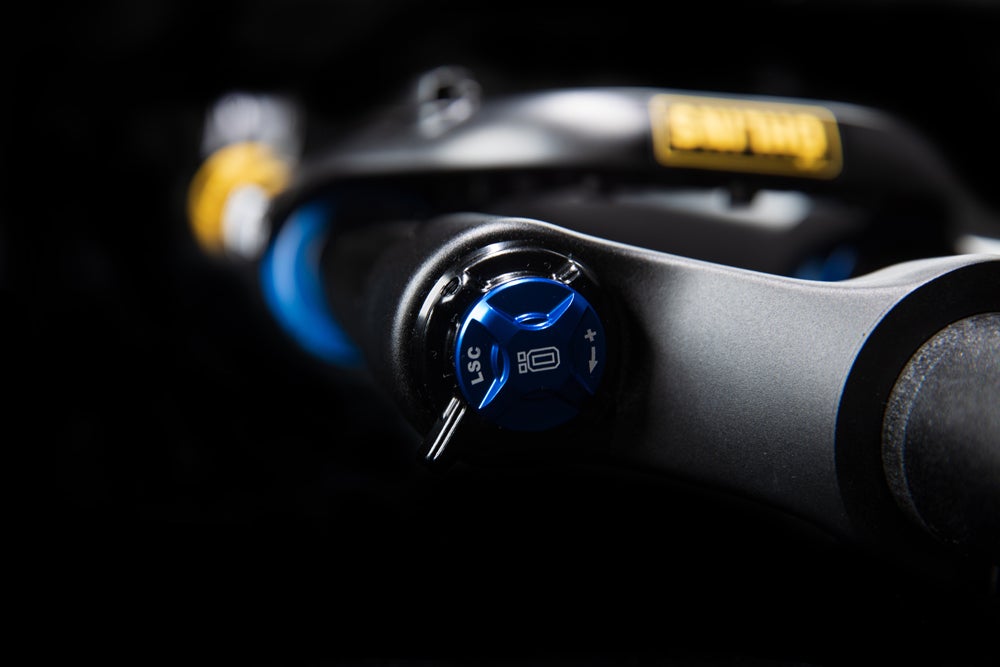

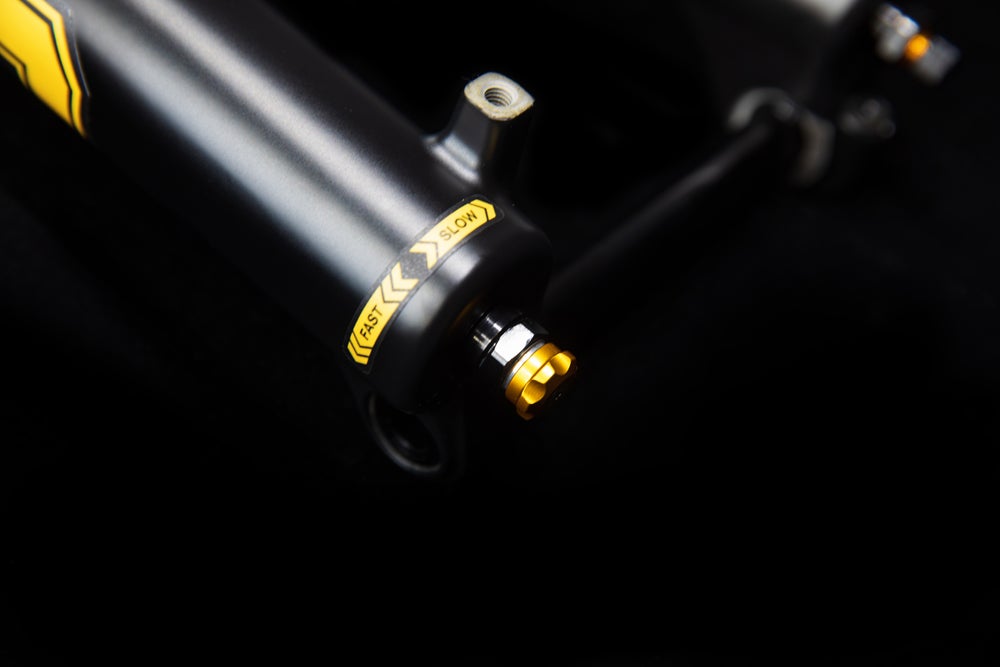

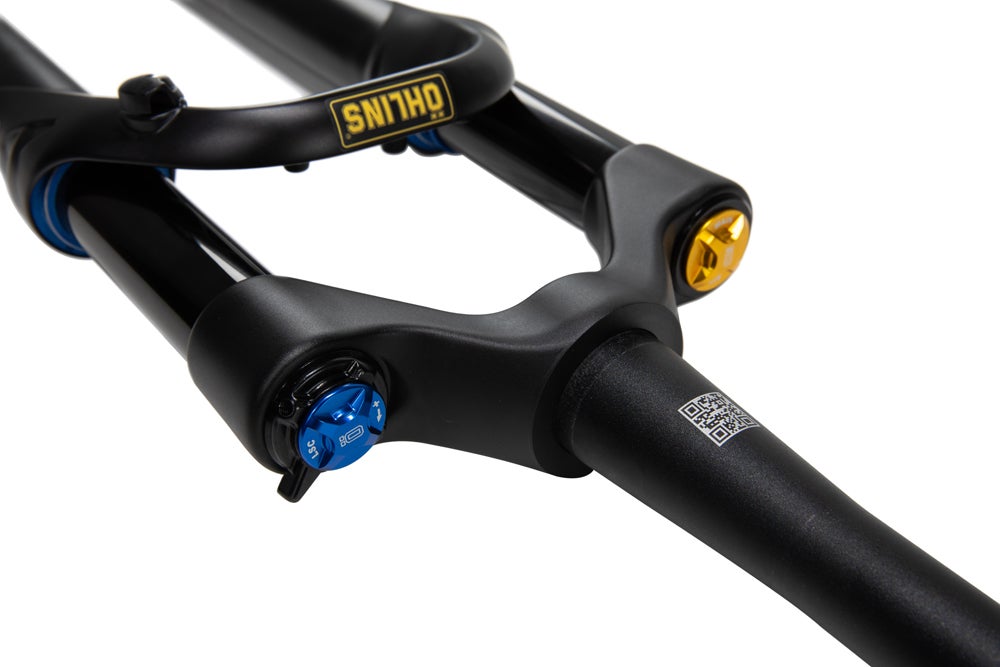

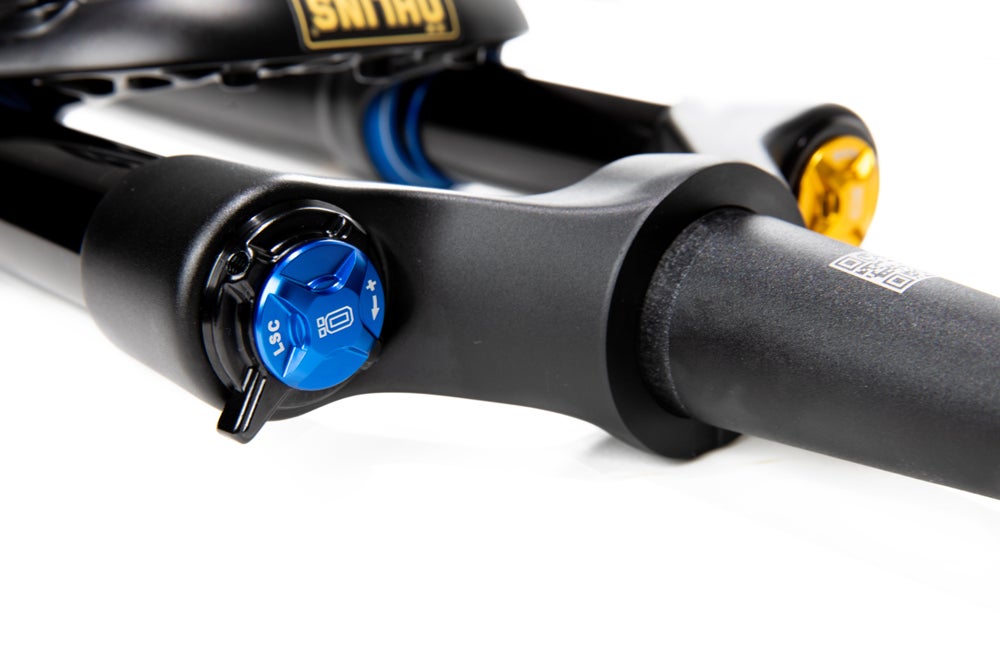

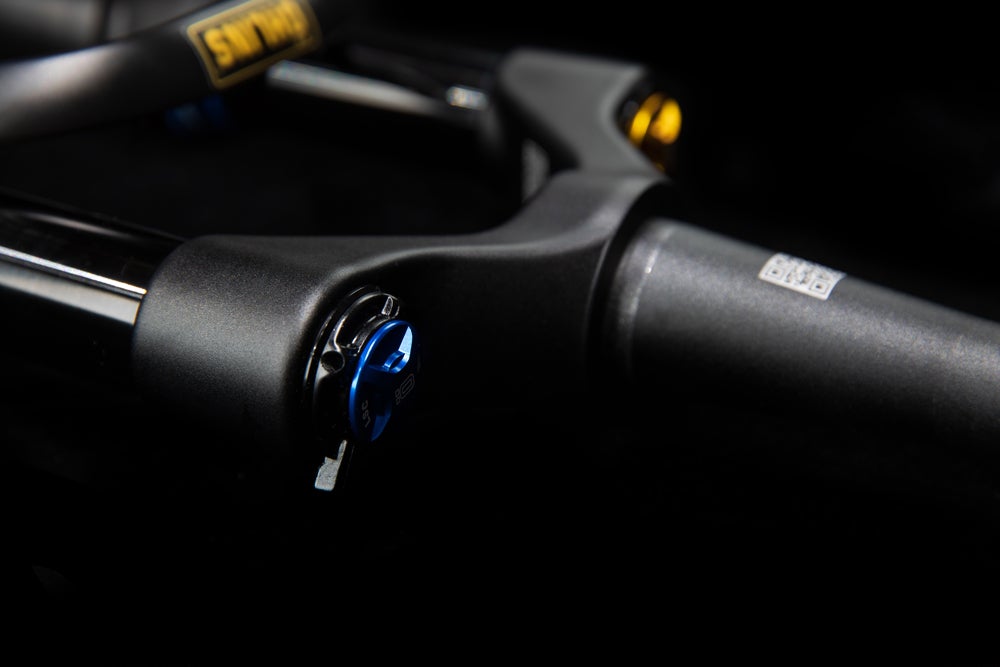

The TTX18 damper is derived from DH World Cup race-proven technology, offering massive support and control in the most demanding situations. The TTX18 cartridge features an 18 mm piston, a twin-tube oil pathway, and external rebound and compression (both high and low) adjustments to achieve optimal fork performance.

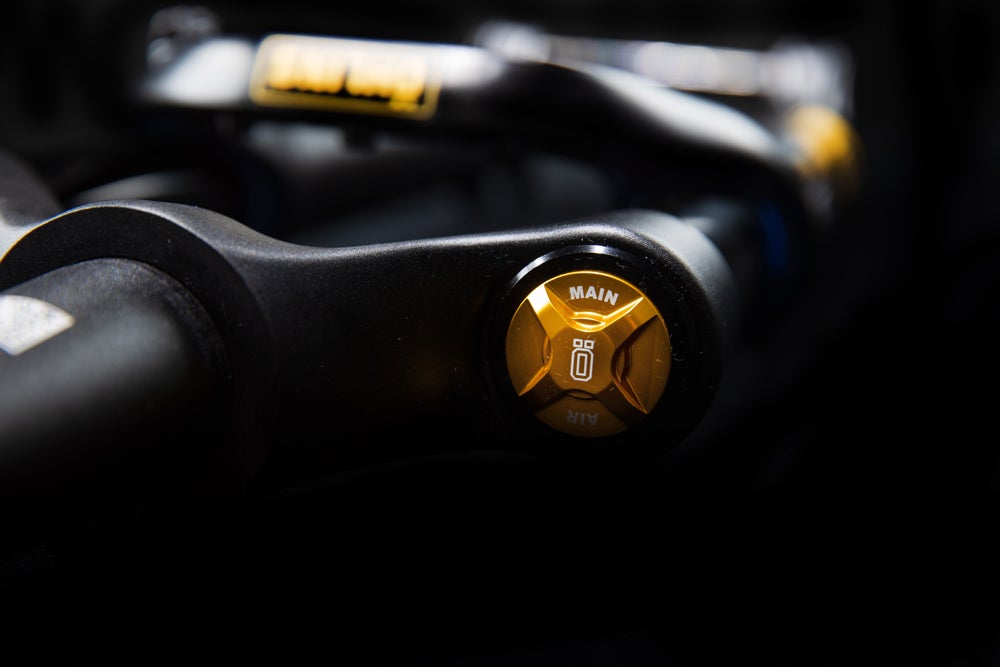

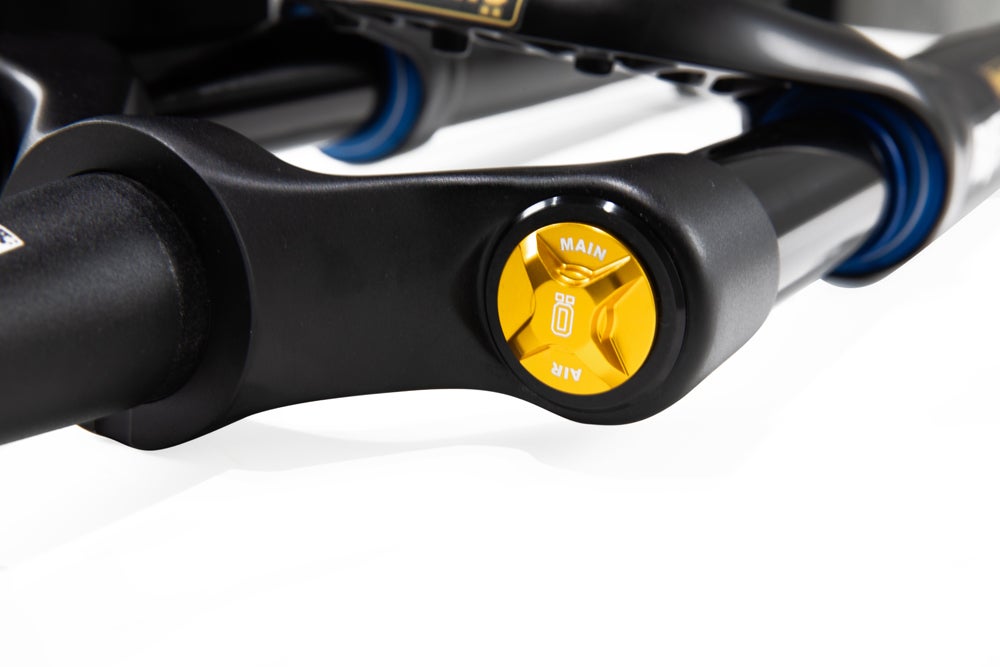

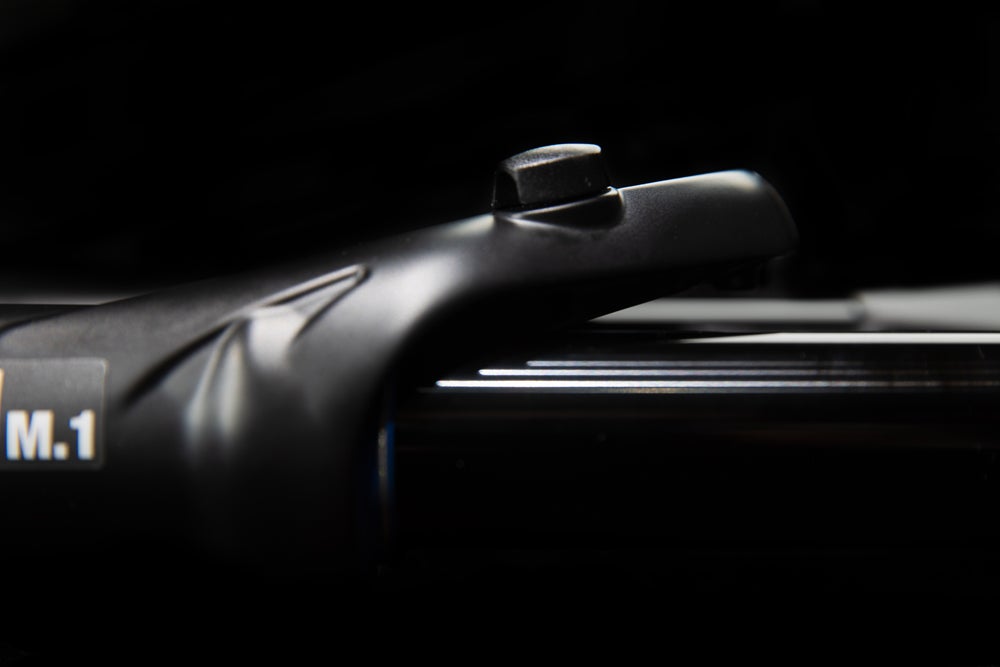

The three-chamber air spring delivers best in class adjustability so you can find the perfect setup for the type of riding you do. Bottom-out progression can be externally adjusted by adding air pressure in the ramp-up chamber —no tokens needed. With a wide adjustment range in both damper and air spring, it is easy to achieve the perfect setup.


The RXFDJ m.1 delivers exceptional control, strength, and confidence to push your boundaries on dirt jumps, pump tracks, and the biggest slopestyle lines alike.



Features

TTX technology
Independent spring system
Independent damper system
Air travel 90 mm
36 mm stanchions
38 mm offset

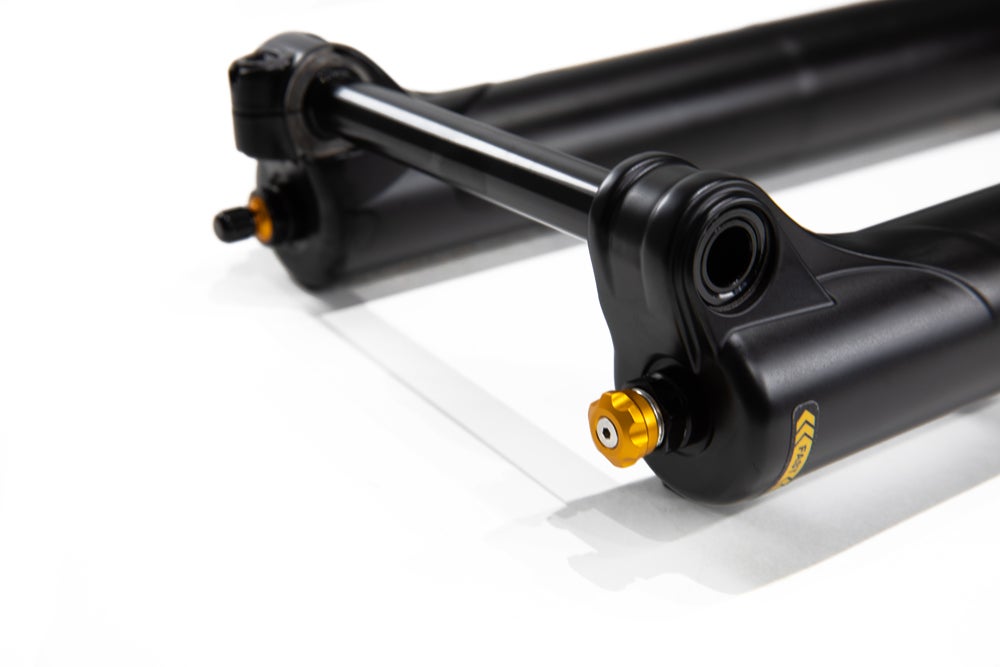

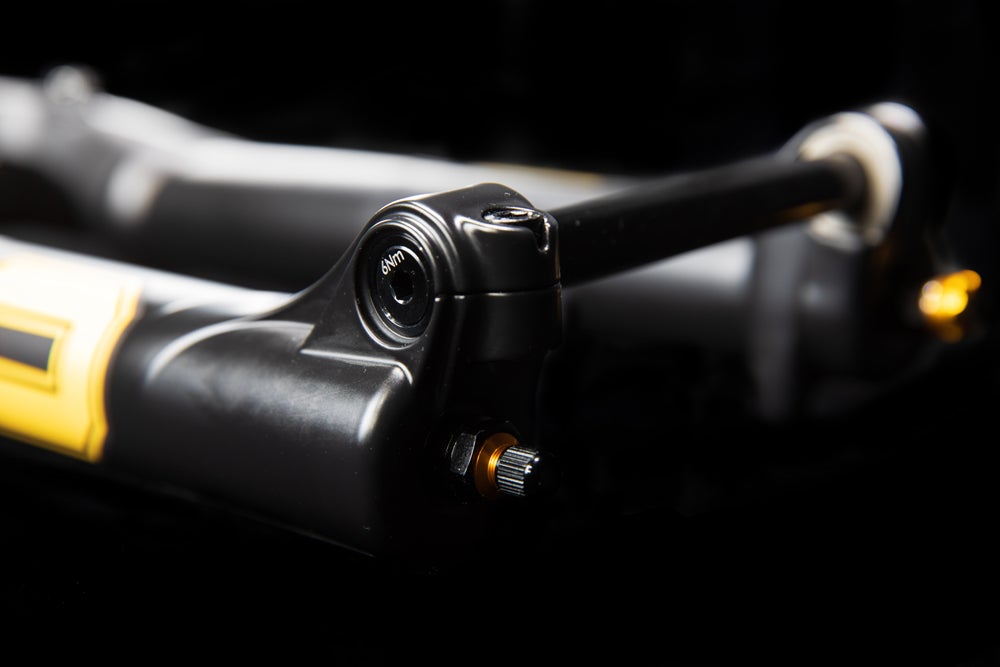

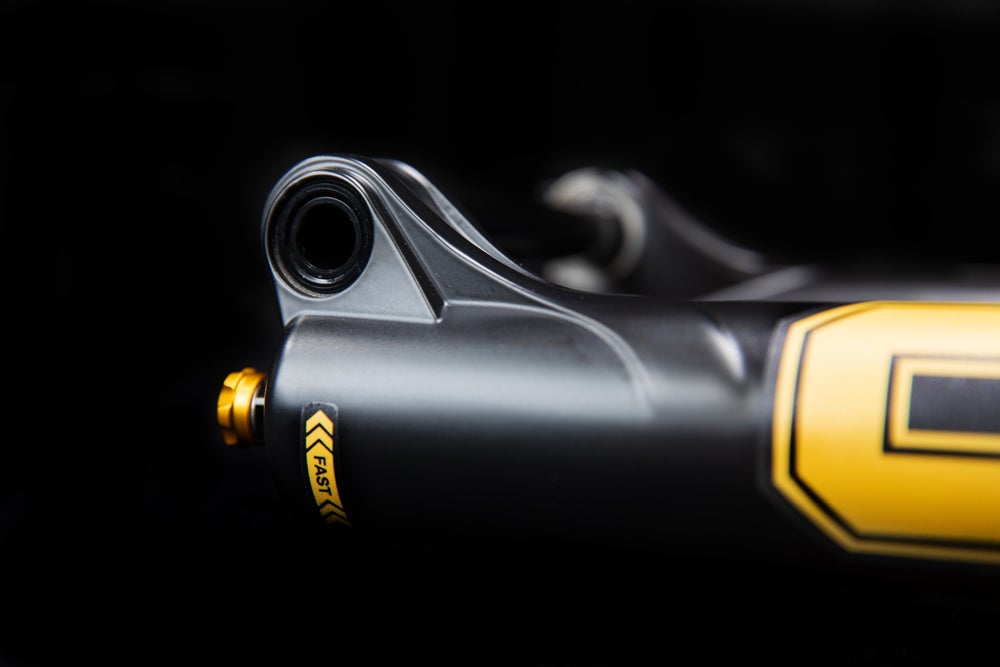

Floating 15x110 axel for minimal friction
Wheel size 26”
Weight 2150 g (with bolts + axle)
Axel crown:
489
Wheel size:
26''
Brake dim:
180-205
Damp tech:
TTX18
Hsc Cli:
3
Lsc Cli:
15
Lsr Cli:
15
Offset:
38
Tire:
2.8''
Travel:
90mm
Axel dim:
110x15
